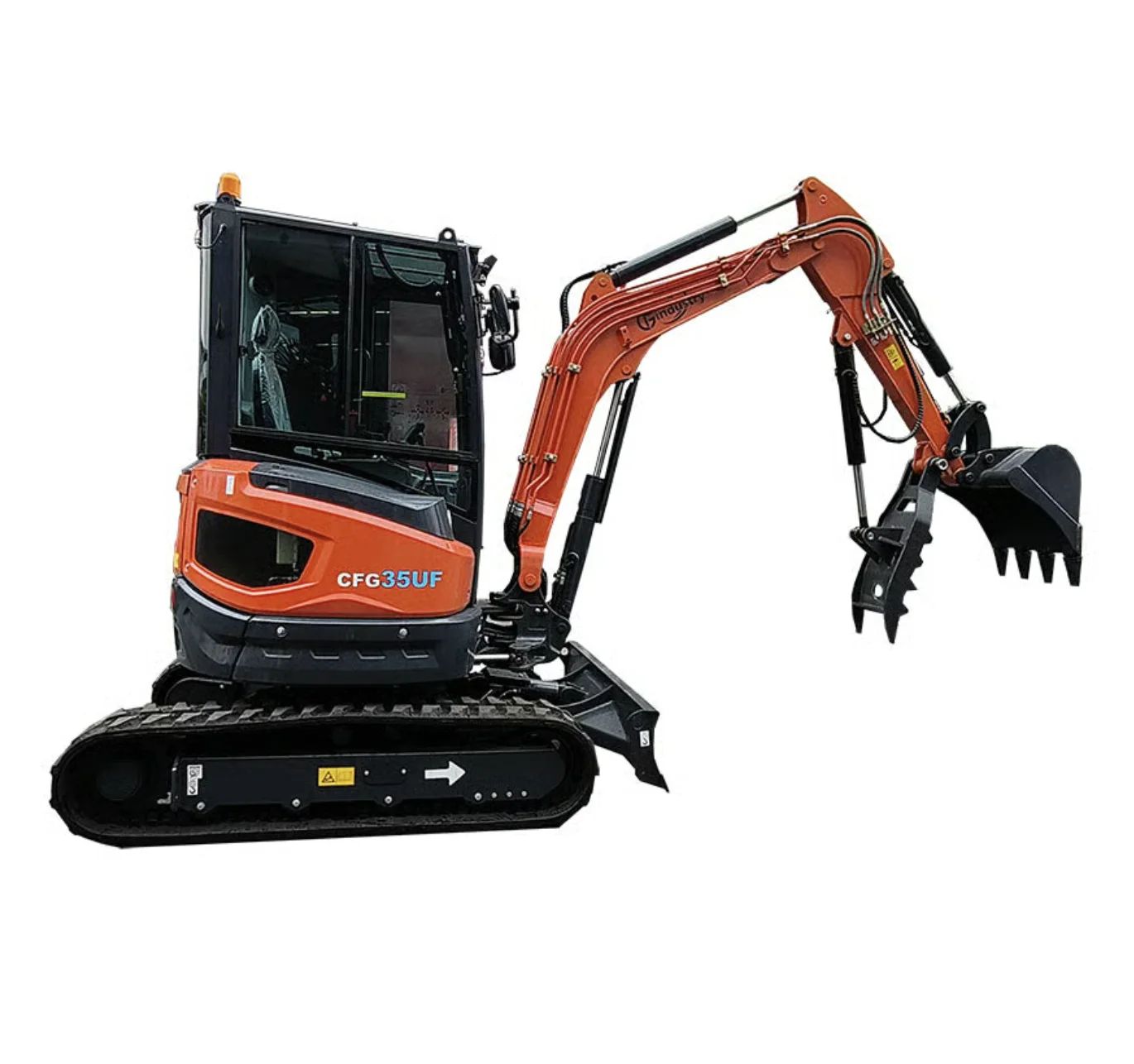

Dimension

• Operating Weight: 2.8 Ton (5600 lb)
• Overall Length: 4150 mm (163 in)
• Overall Width: 1500 mm (59 in)
• Overall Height: 2510 mm (99 in)
• Track Size: 300*55*78 (W*P*L)

Working Range

• Max Digging Depth: 2800 mm (110 in)
• Max Digging Height: 4235 mm (167 in)
• Max Dumping height: 3040 mm (120 in)
• Max Reach at Ground: 4665 mm (184 in)
• Dozer Blade Width: 1500 mm (59 in)
• Dozer Blade Height: 325 mm (13 in)
• Blade Max Lifting Height: 325mm (12.8 in)
• Blade Max Drop Depth: 300mm (11.8 in)

Engine

• Engine Brand: Kubota
• Fuel Type: Diesel
• Model: D1105
• Rated Power: 15.4kw (20.6 HP)
• Displacement: 1123 cc
• Fuel Capacity: 26 L (6.9 gal)
• Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
• Hydraulic Pressure: 24.5 MPa (3553 psi)
• Battery: 12V, 63Ah

Features

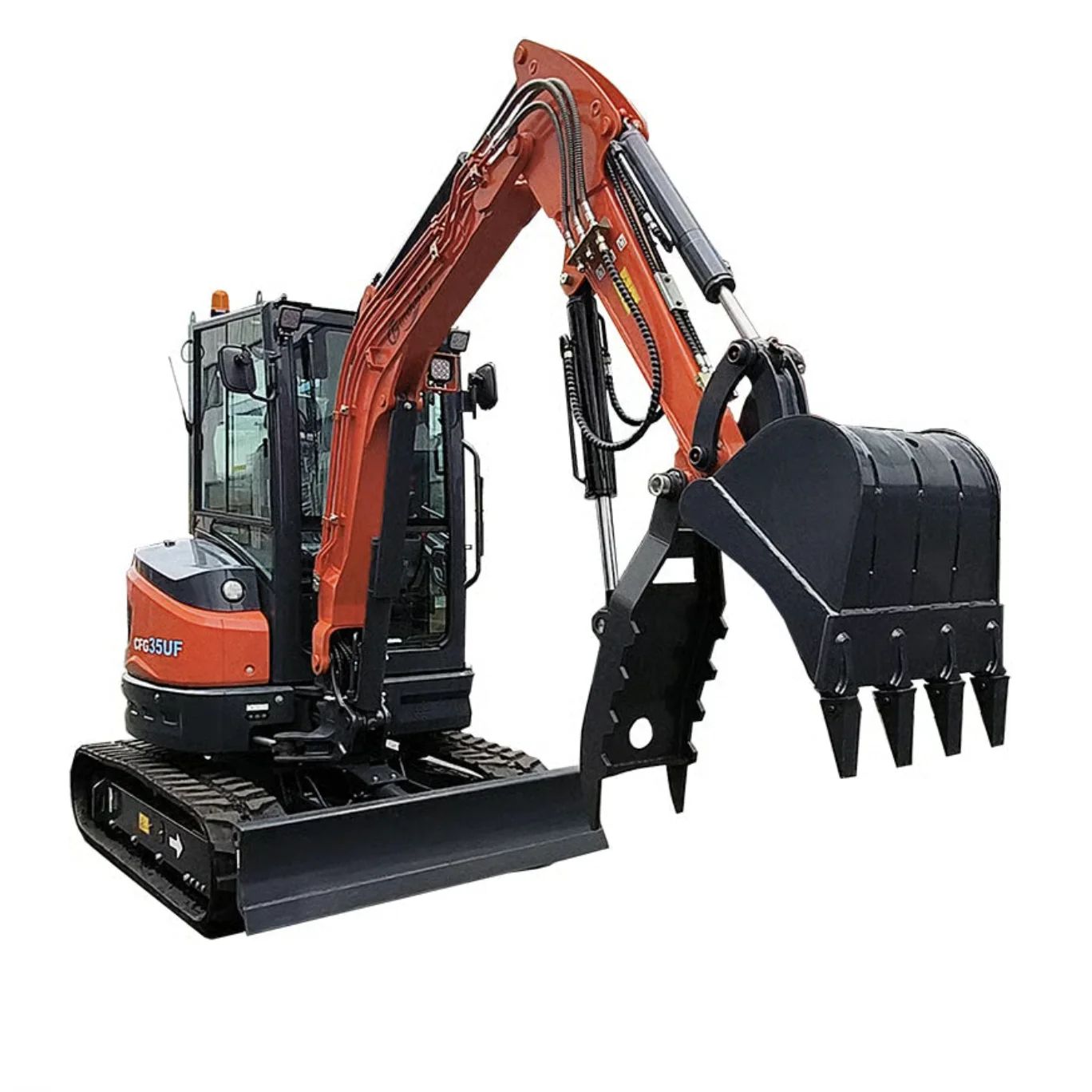

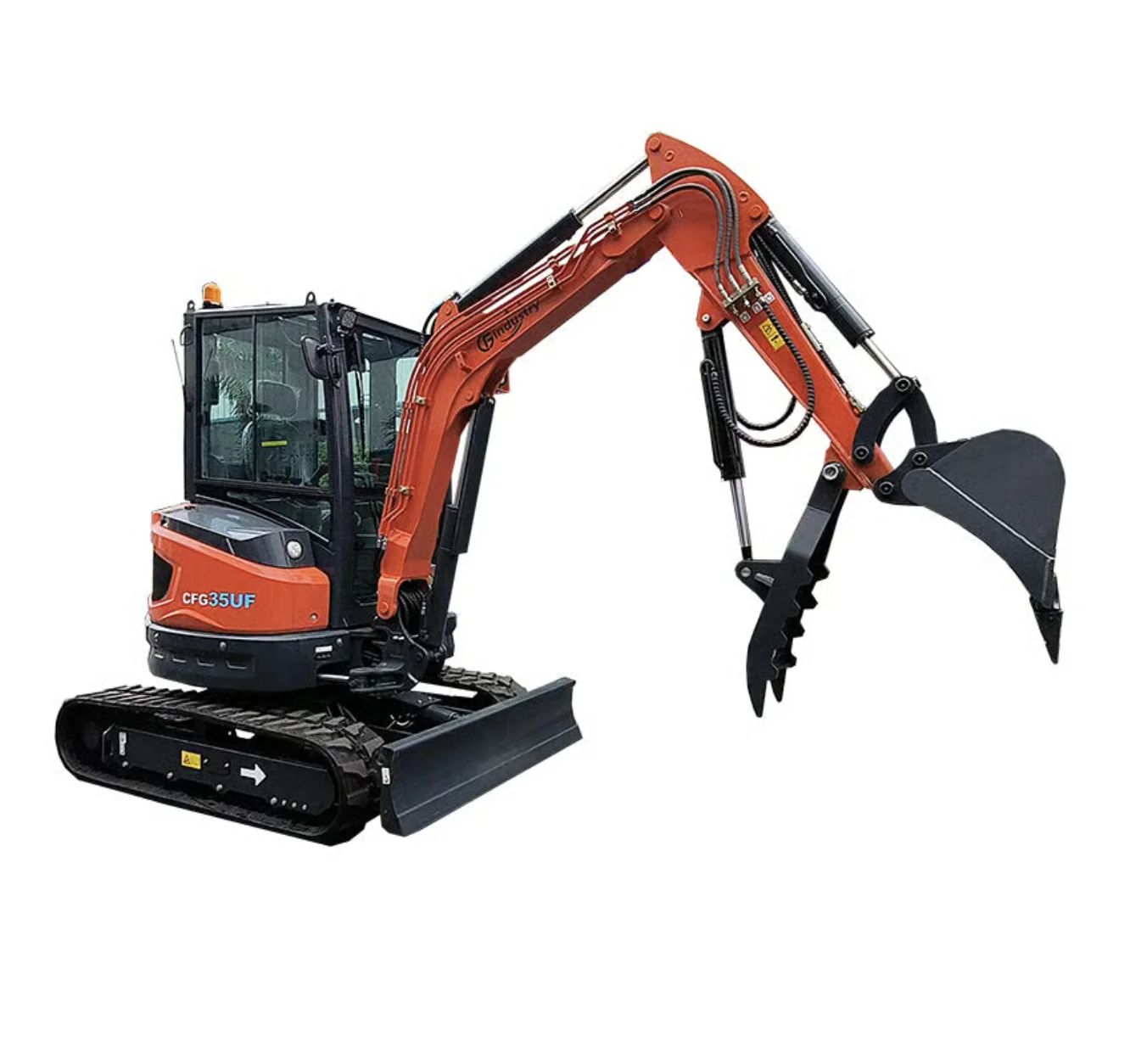

• Hydraulic Thumb

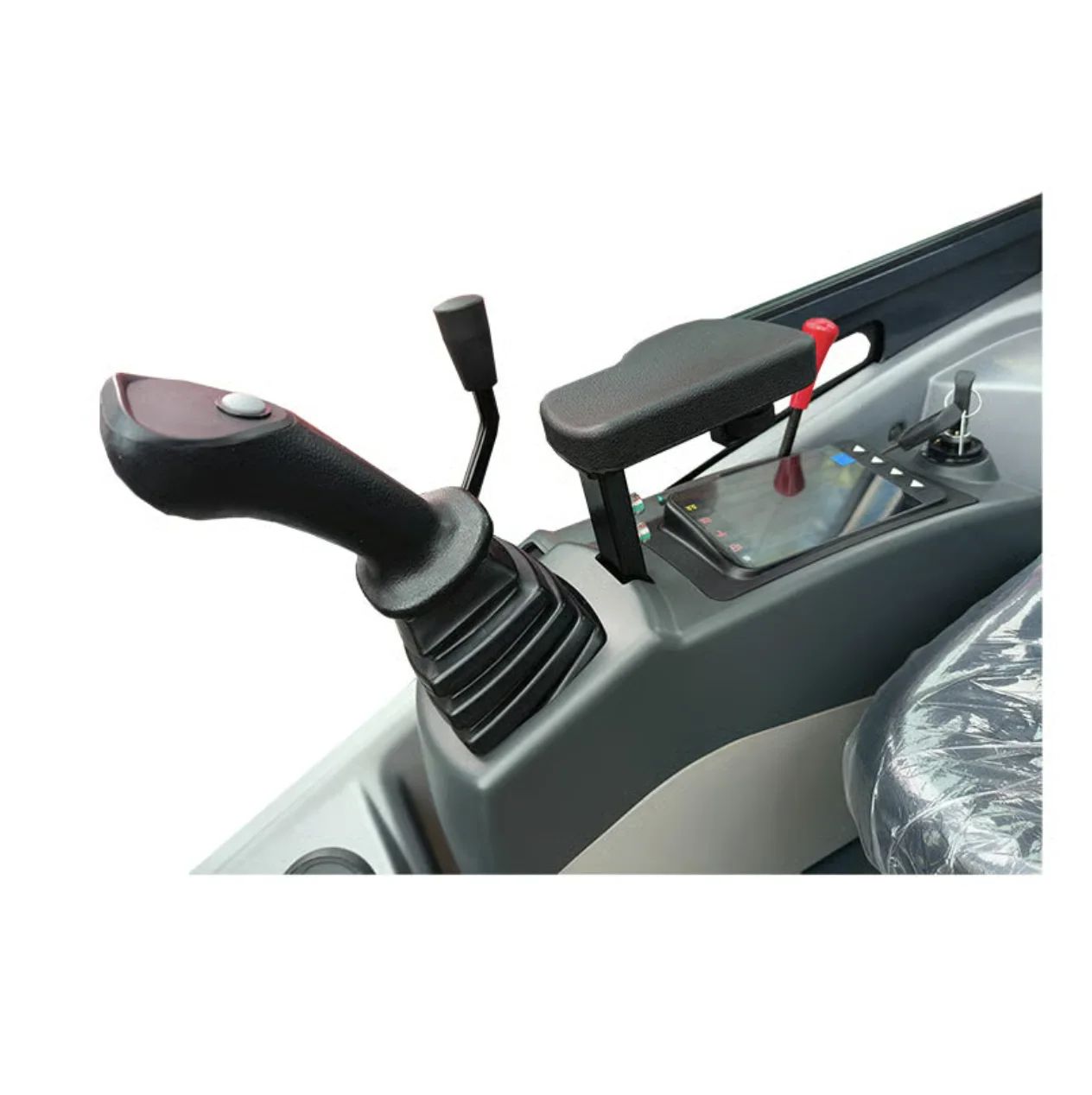

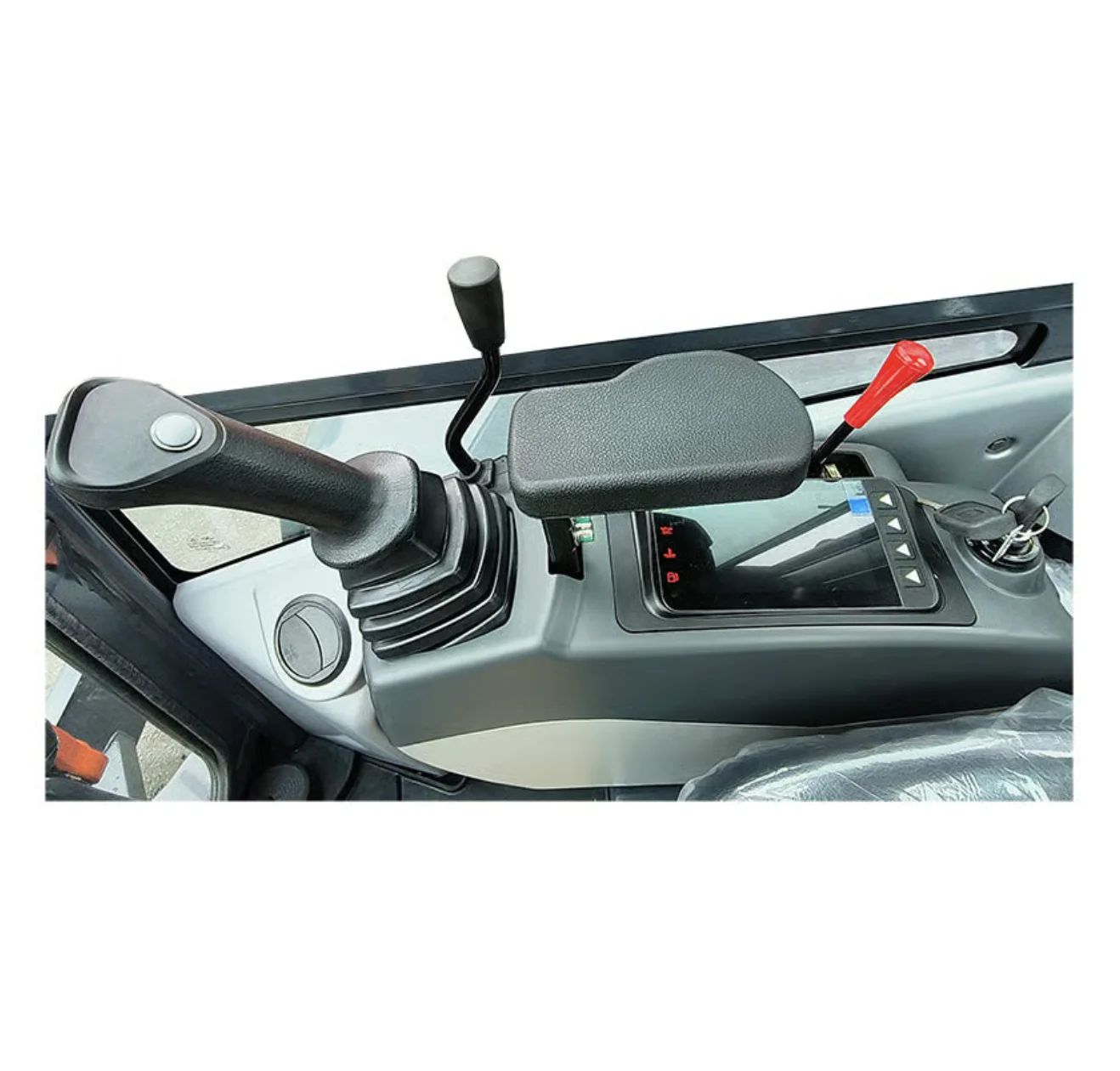

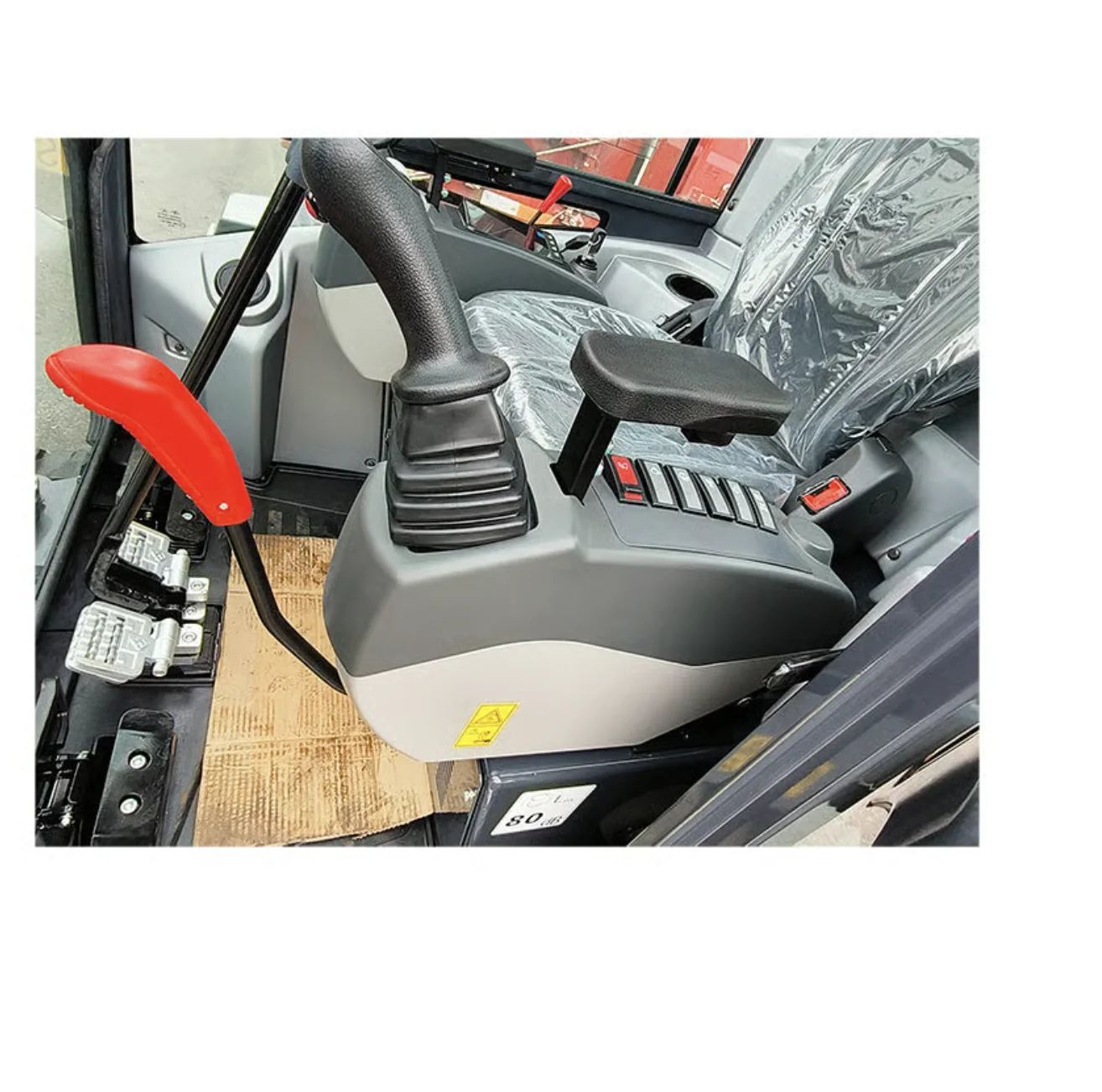

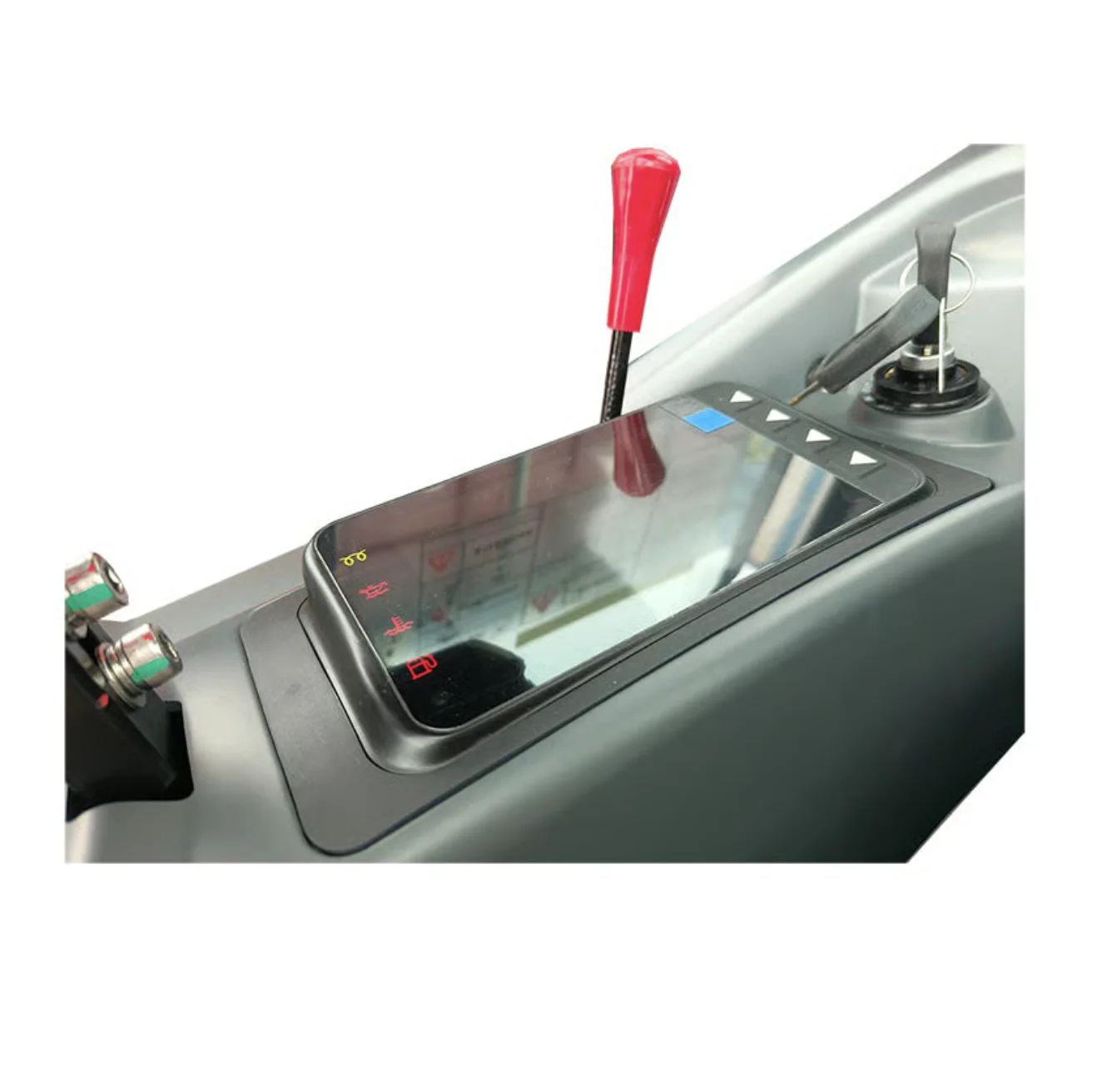

• Pilot Control
• Enclosed Cab
• Side Swing Boom
• Water-Cooled Engine
